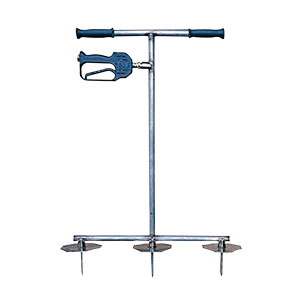

WET FORK WI3

• Tine Length: 100 mm
• Tine Pitch: 250 mm
• Nozzle: 4 Holes × 2 Stages (Upper and Lower)

WINDOW WHEEL

• Covered hand-push sprayer, 4-nozzle type

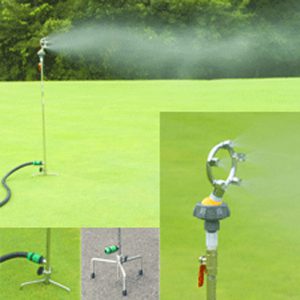

Hirumaki-kun MSG50

• Nozzle: Round 5-Nozzle Type
• Supply water pressure: 0.3–0.4 MPa
• Maximum Operating Pressure: 1 MPa
• Spray droplet size: Average 60 μm
• Nozzle Mounting Angle: Up to 54°
• Nozzle Height: Approx. 950 mm
• Connection to water supply: One-Touch Coupler
• Hose Inner Diameter: 15 mm
• Spraying method: Spray and Stop Controlled by Ball Valve

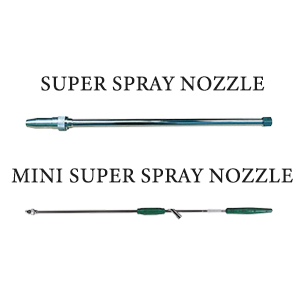

SUPER SPRAY NOZZLE

MINI SUPER SPRAY NOZZLE

• Spray angle: 30°
  Uniform spray distribution achieved by a specially designed core.
• Effective spraying range: 4 m

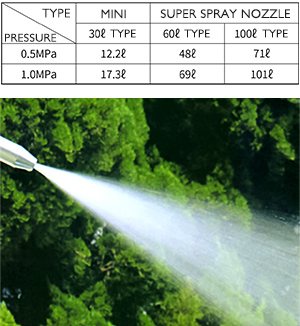

  Available in three discharge capacities (30, 60, and 100 liters) to match required output.
• The spray pattern is circular and granular.
  The spray volume forms an inverted circular ring pattern, being denser at the center and lighter toward the edges.
  It provides excellent wind resistance, allowing sufficient spraying even without the use of drift-control agents.
